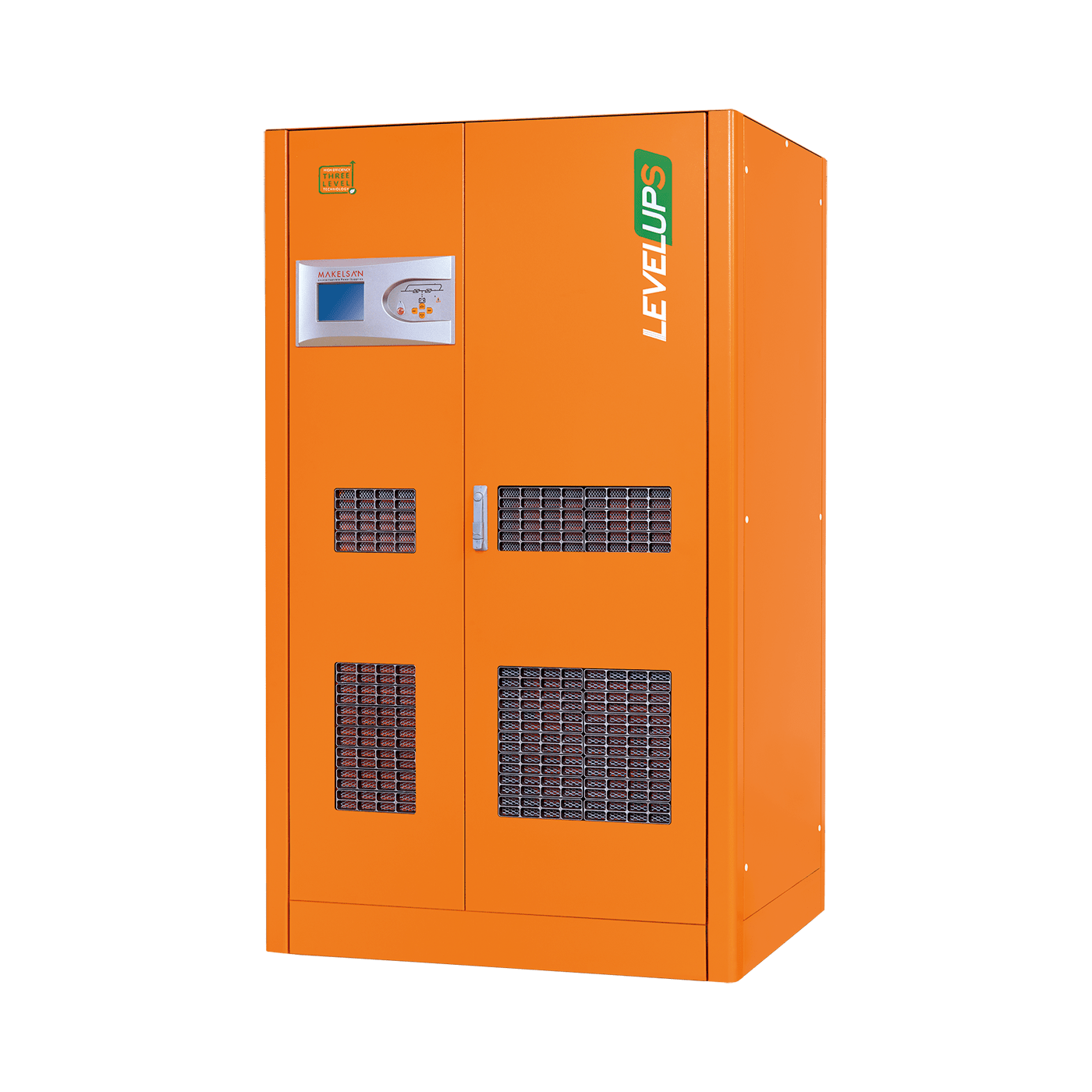

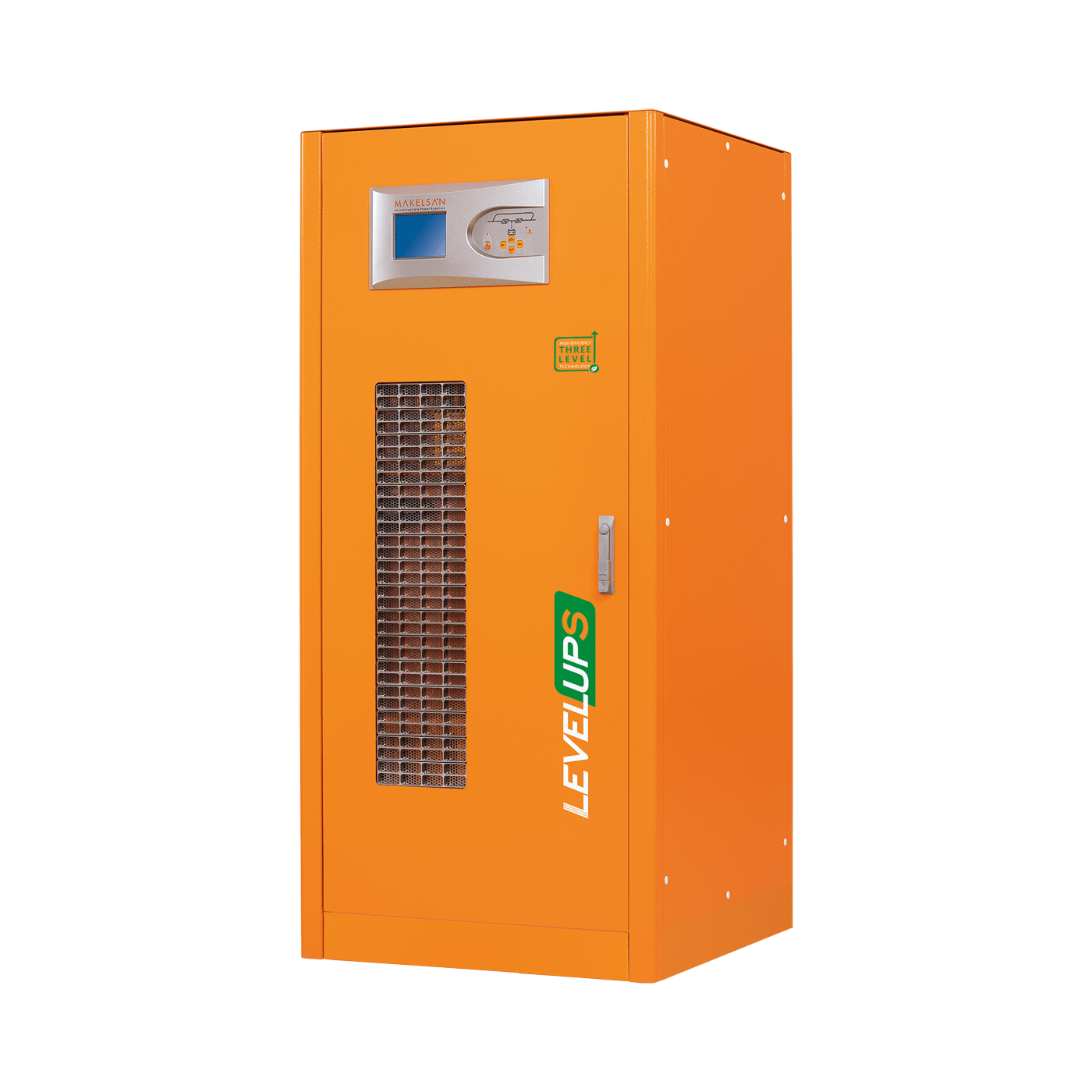

LEVELUPS SERIES 10 - 1000 kVA
|

LevelUps series with Innovative 3 Level Technology is a true on-line double conversion, three-phase UPS system that provides one of the highest level energy efficiencies in the industry.

  • True Three Level Rectifier and Inverter Technology
  • Ultra High Energy Effiency
  • Full Rated Power Factor kW=kVA
Share:

INNOVATIVE 3 LEVEL TECHNOLOGY

LevelUps series with Innovative 3 Level Technology is a true on-line double conversion, three-phase UPS system that provides one of the highest level energy efficiencies in the industry.

FULL RATED POWER FACTOR kW=kVA

  • Output power factor of 1 (kVA=kW) rate provides up to 25% more active power than a traditional UPS.
  • Suitable for modern power supply application with unit or capacitive power factor (e.g. new servers generation).
  • No reduction in active power from 0,9 leading to 0,9 lagging.

HIGH EFFICIENCY & LOW TOTAL COST OF OWNERSHIP

Three level inverter & rectifier design LevelUps series brings the newest power conversion technology and delivers efficiency up to 96% at 50-75% load operation which is the most common operating range.
Less energy consumption to supply the loads thanks to high efficiency up to 96%. Reduced energy loss. Reduced electricity usage and air conditioning requirements. Reduction in operating cost of UPS.

High Efficiency & Low Total Cost of Ownership
  • Less energy consumption to supply the loads thanks to high efficiency up to 96%.
  • Reduced energy loss
  • Reduced electricity usage and air conditioning requirements.
  • Reduction in operating cost of UPS.
  • IGBT based power factor correction technology provides input power factor close to 1 (≥ 0,99). The high input power leads to reduced electricity pay-out, minimizes cable, switchboard, fuse and generator requirements, thus reducing investment cost.
  • Low input current total harmonic distortion (THDi) less than 3% helps to avoid the disturbance and expensive harmonic filters.
  • Small footprint and easy maintenance.
High Output Power Factor 1
  • Output power factor of 1 (kVA=kW) rate provides up to 25% more active power than a traditional UPS.
  • Suitable for modern power supply application with unit or capacitive power factor (e.g. new servers generation).
  • No reduction in active power from 0,9 leading to 0,9 lagging.
Maximum Availability
  • Parallel configuration up to 8 units per redundancy (N+1) and power increase.
  • Loop connection helps the UPS system to continue the operation when the connection cable is inturrupted.
Standard Electrical Features
  • Dual Input
  • Common Battery
  • Backfeed Protection
  • Cold Start (Optional)

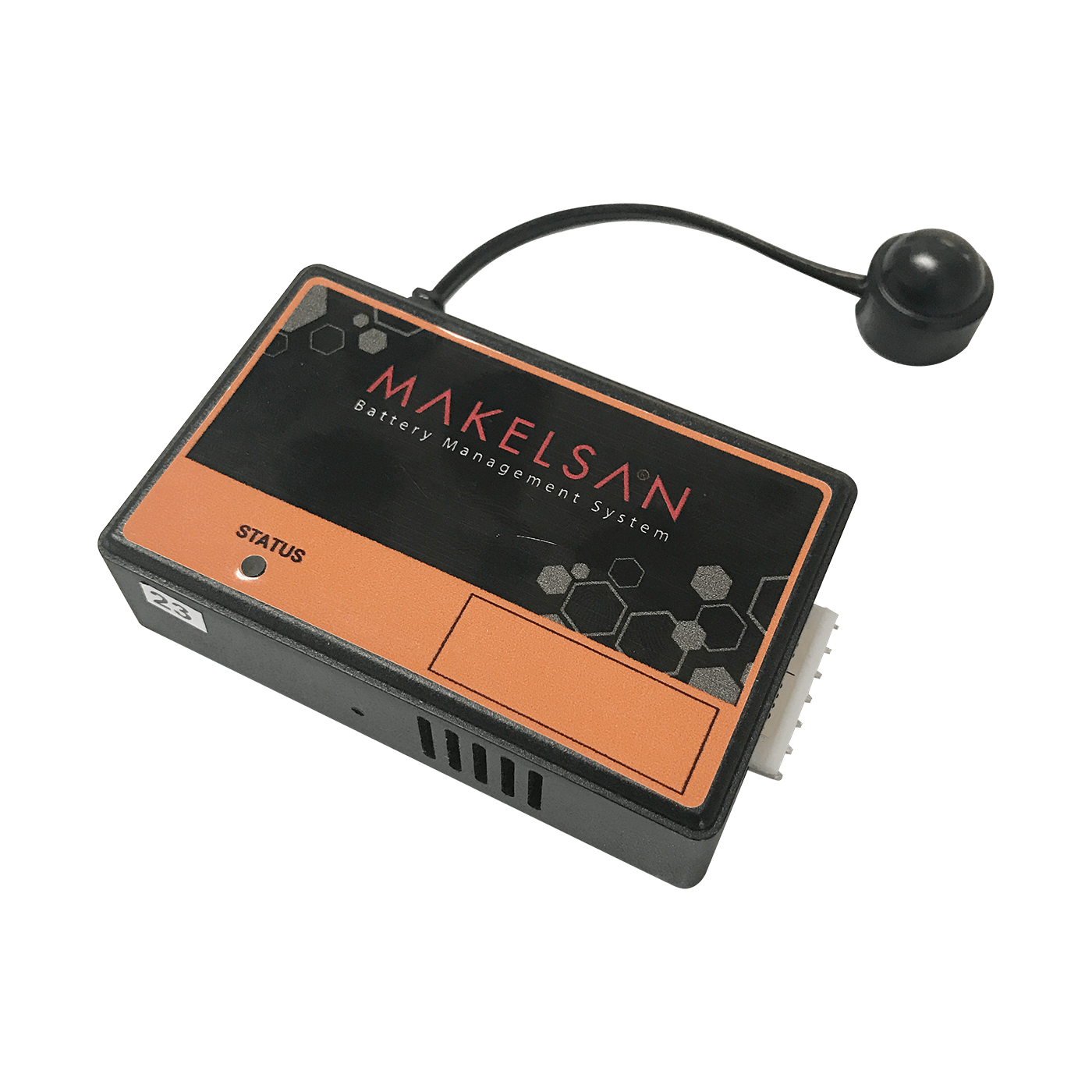

  • Advanced Battery Management
  • Short Circuit and Overload Protection
  • Parallel Ready
  • Redundant Power Supply
  • Power Walk-in for Progressive Rectifier Start-up when the
  • Mains is Restored.
  • Battery Temperature Sensor

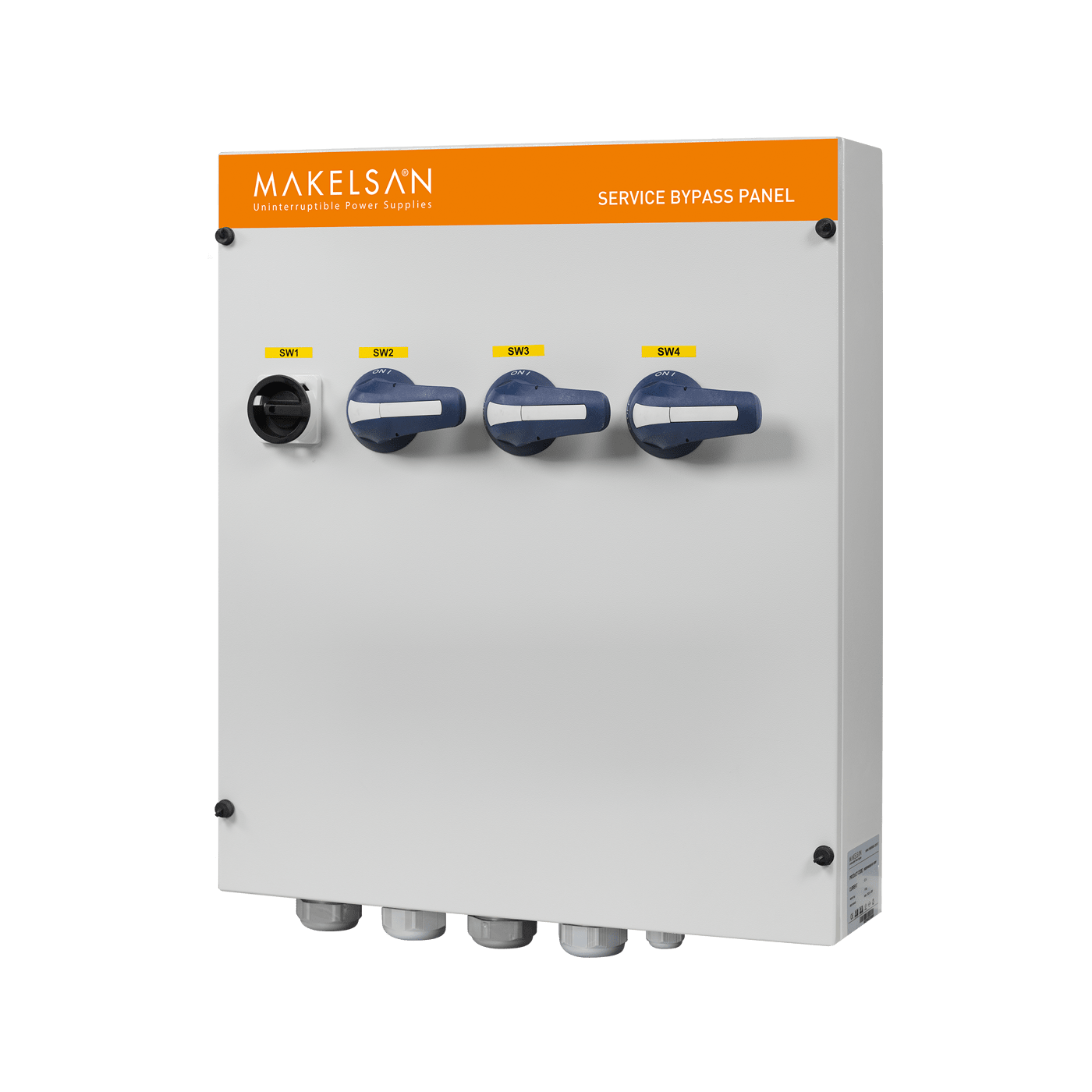

  • Static and Manual Bypass Operation
Advanced Communication Features
  • 500 Real Time Event Log with Detailed Parameters
  • User Friendly Multilingual 320x240 Graphic Display Provides
  • Operation Information
  • Monitoring and Shutdown Software
  • RS232 Serial and RS485 Ports

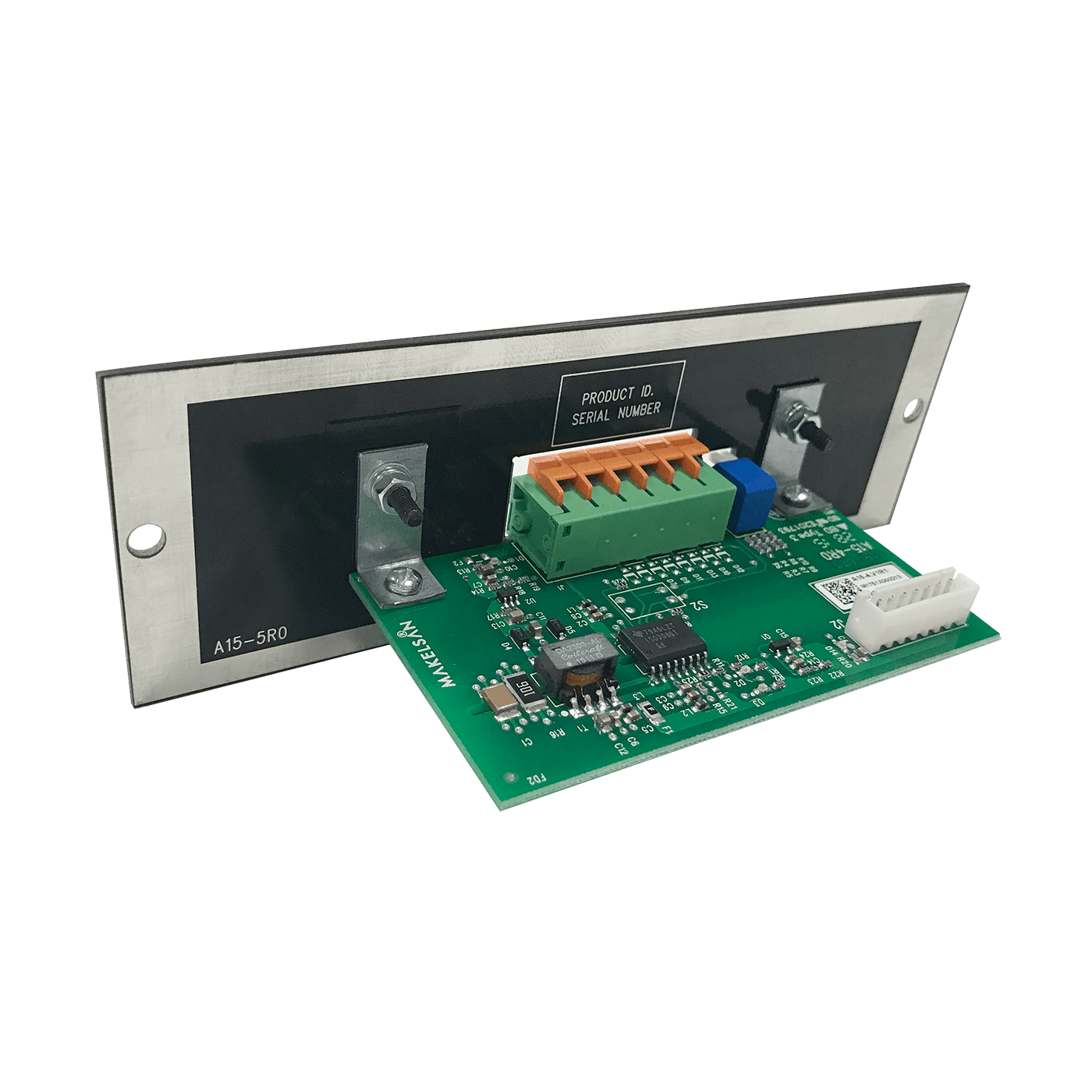

  • Modbus RTU (Optional)
  • 2 Communication Slots
  • Remote Emergency Power Off (Optional)

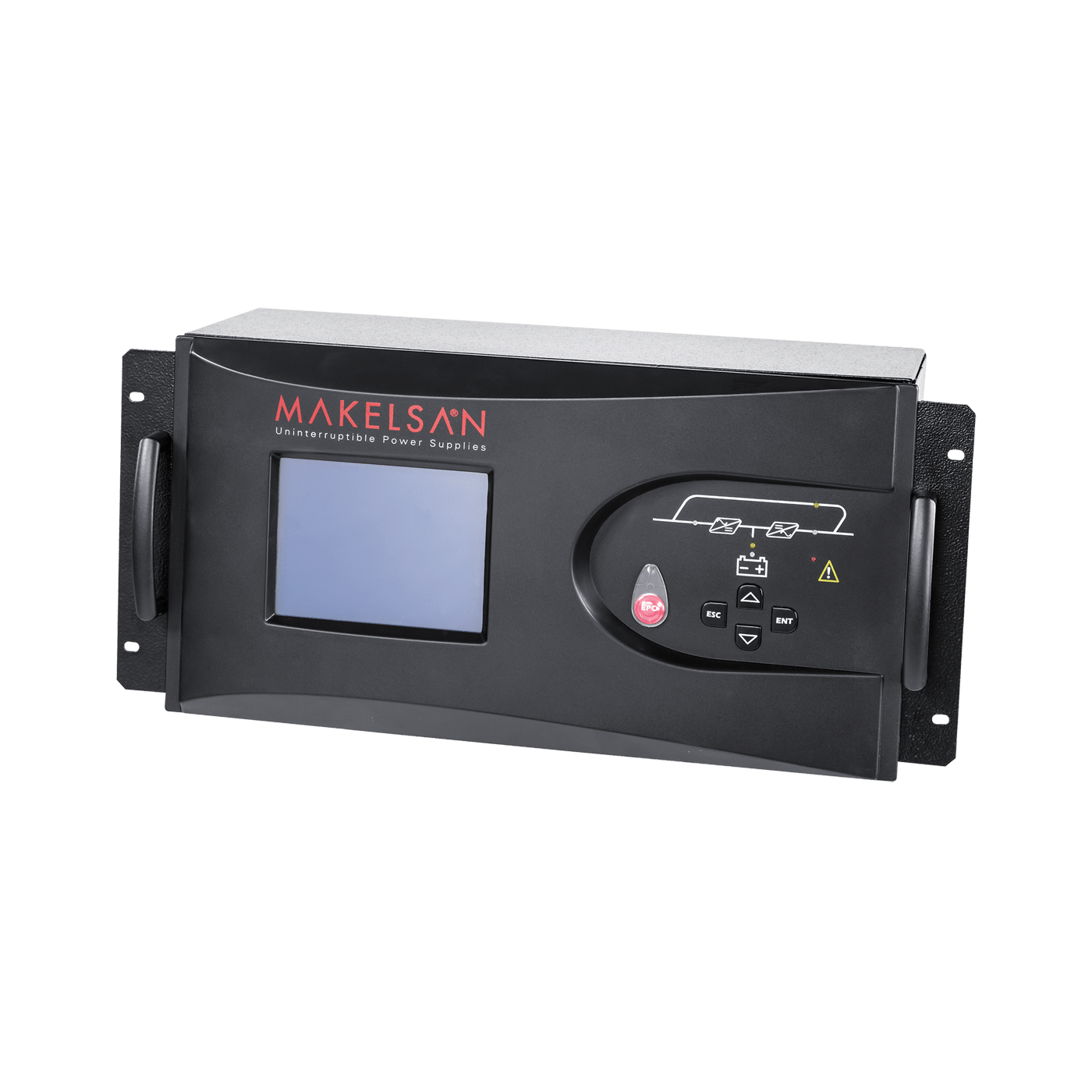

  • Remote Display Panel (Optional)

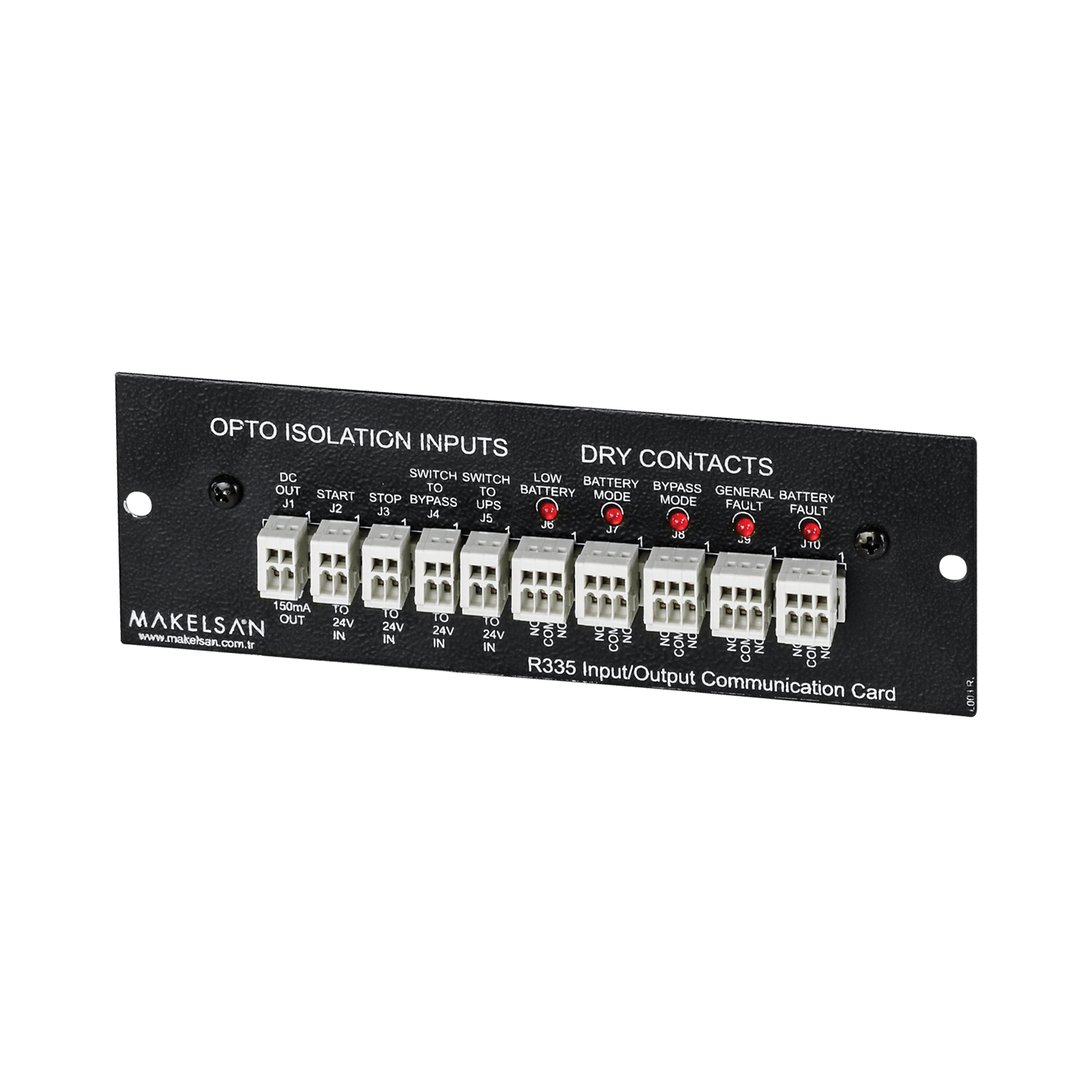

  • Dry Contact (Optional)

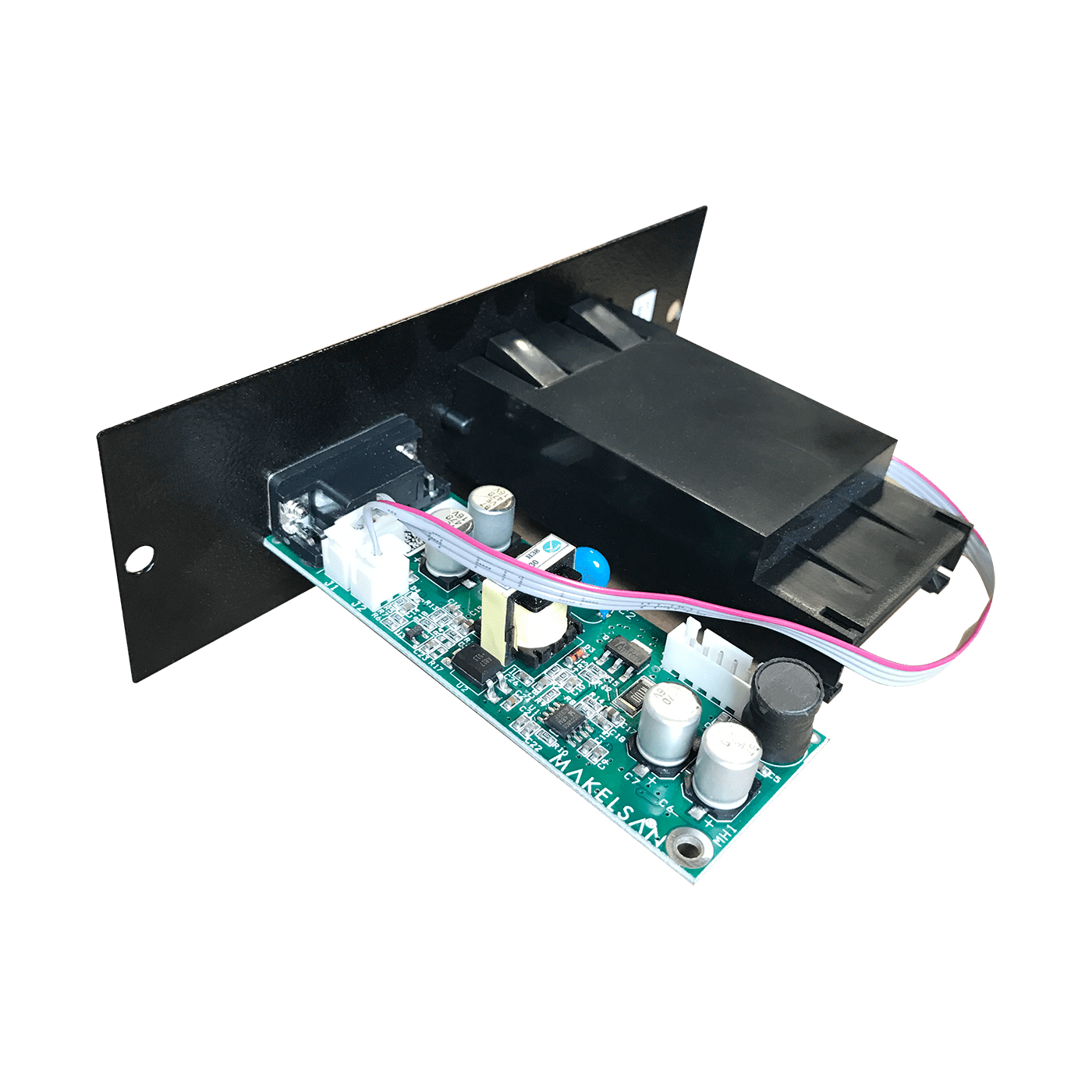

  • SNMP (Optional)
  • ProfiBUS (Optional)
Flexibility
  • Temperature sensor for external battery cabinets for extended runtimes.

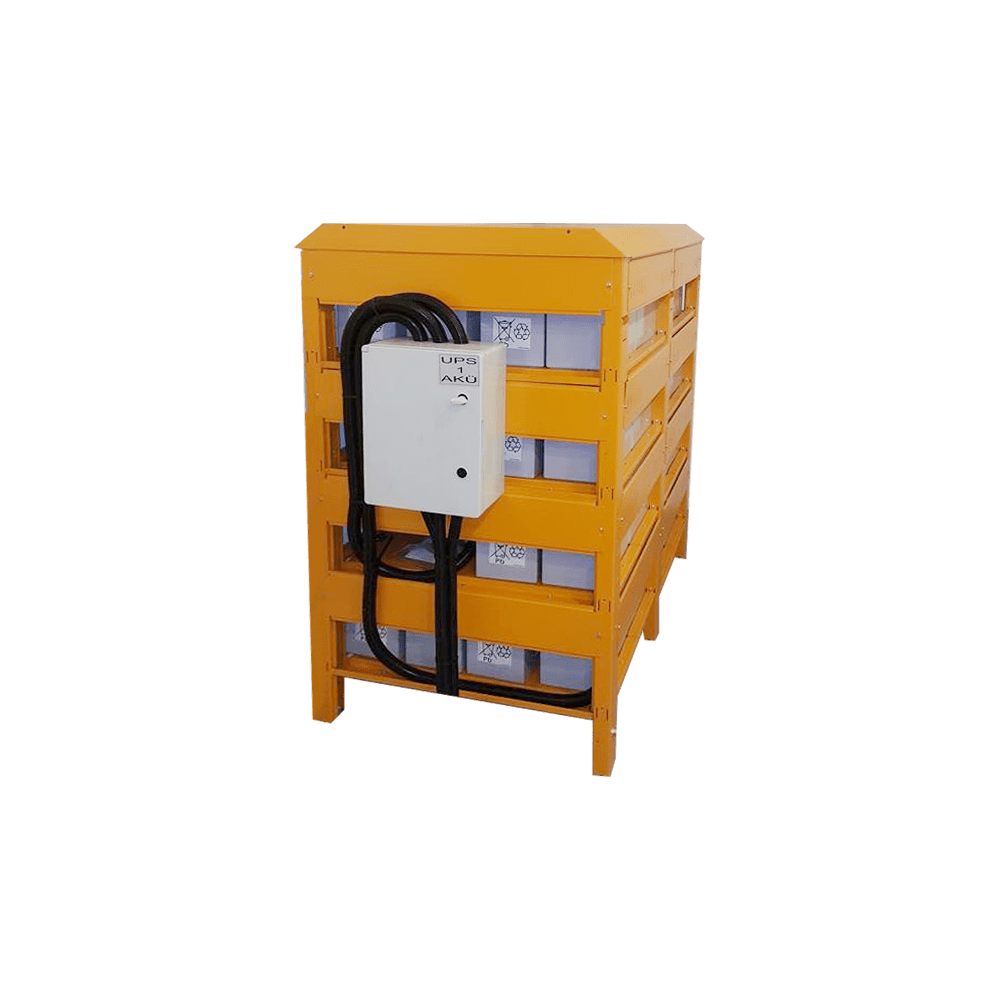

  • External battery cabinets for different sizes of batteries to provide extended runtimes.

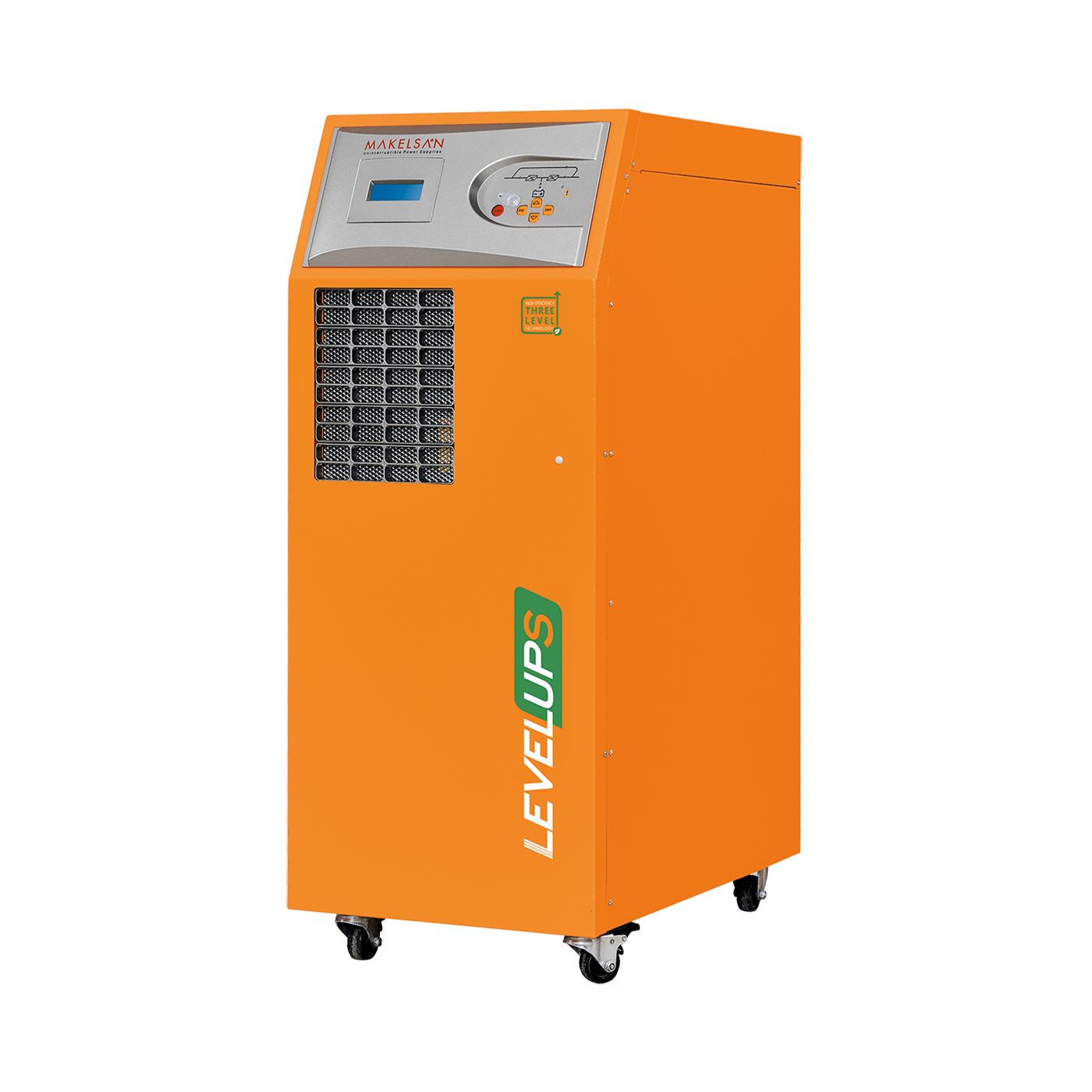

  • Different sizes of 10-40kVA cabinets for larger capacity of internal batteries when long autonomy times are required.
  • 3/1 Phase version is available for 10-30kVA power ratings Frequency converter mode.
  • Isolation transformers to vary neutral connectivity in the event of separate power sources or for galvanic isolation between input and output.
  • Compatible version with EN 50171 for supplying power to emergency lighting systems.
